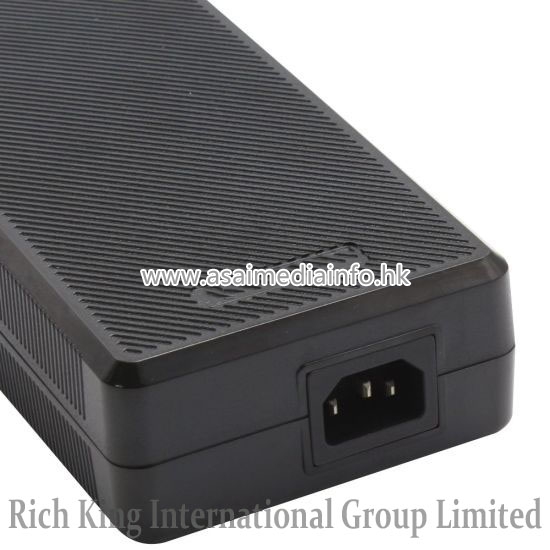

Power Adapter

Output Type: Single

Output Power:       201 - 300W

Input Voltage:        100-240VAC

Connection Mode:         Series Switching Power Supply

Starting Mode:       Self-excited Switching Power Supply

Features:

    UL CB CE FCC RoHS SAA PSE Level VI Standard

    Protection: Short circuit/Over current/Over temperature/Over voltage

    High efficiency, long life and hign reliaility

    100% full load burn-in test

    100% Pure PC fireproof material

Product Description:

AC 110V 220V to DC 5V 12V 24V 36V 48V 20A 10A 5A 6A 8A 150W 200W 240W 250W Power Adapter/Switching Power Supply with UL CE RoHS FCC CB PSE SAA

DC Voltage         5V or 12V or 24V or 36V or 48V(Optional)

Rate Current      20A or 10A or 8A or 6A or 5A(Optional)

Voltage tolerance      ±5%

Line Regulation         ±1%

Load Regulation        ±5%

AC Input     100~240Vac 50/60Hz max: 90~264Vac 47/63Hz

Short Circuit Protection

Shall be protected when any output operation in circuit short condition,and shall be  auto restart when the fault condition is  removed.

Over Current Protection  130%-150%

Over Voltage Protection  115%-135%

Operating Temperature   -10-50ºC (±10ºC)

Relative Humidity    20%-90% RH

Storage Temperature      -40-80ºC (±10ºC)

DC Connector  4pin or 6pin(Customized Available)

DC Cable 0.6m/0.8m/0.9m(Customized Available)

AC Plug    USA/UK/EU/AU/India plugs(Customized Available)
