Power Supply Adaptor

Product Feature

    UL ETL CB CE FCC RoHS SAA C-tcik CB PSE KC Standard and DOE Level VI Standard

    Protection: Short circuit/Over current/Over temperature/Over voltage

    High efficiency, long life and high reliability

    100% full load burn-in test

    ABS+PC fireproof material,High temperature and flame retardant

Product Parameters

Factory Price Free Sample 5V 6V 9V 12V 19V 24V 36V 1A 2A 3A 4A 5A Wall Charger/Power Supply Adaptor/AC DC Power Adapter with UL ETL CE FCC RoHS SAA C-tick PSE

AC Input   100~240Vac 50/60Hz max: 90~264Vac 47/63Hz

DC Output Voltage  48V or 36V or 24V or 12V or 9V or 6V or 5V etc.(Optional)

DC Output Current  0.5A or 1A or 2A or 3A or 4A or 5A etc.(Optional)

DC Output Power    2.5W-60W(Optional)

Voltage tolerance    ±5%

Line Regulation       ±1%

Load Regulation      ±5%

Short Circuit Protection   Shall be protected when any output operation in circuit short condition,and shall be auto restart when the fault condition is removed.

Over Current Protection  130%-150%

Over Voltage Protection  115%-135%

Operating Temperature   -10-50ºC (±10ºC)

Relative Humidity    20%-90% RH

Storage Temperature      -40-80ºC (±10ºC)

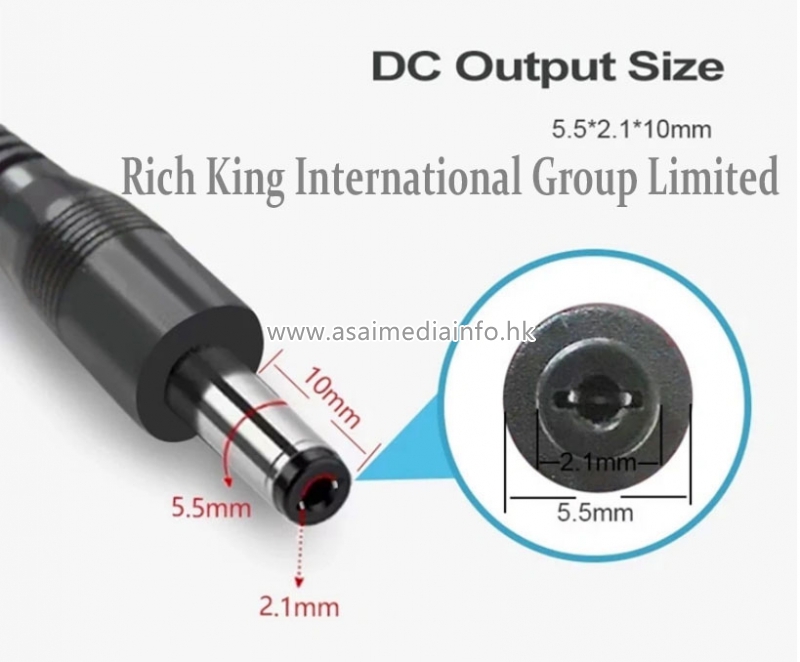

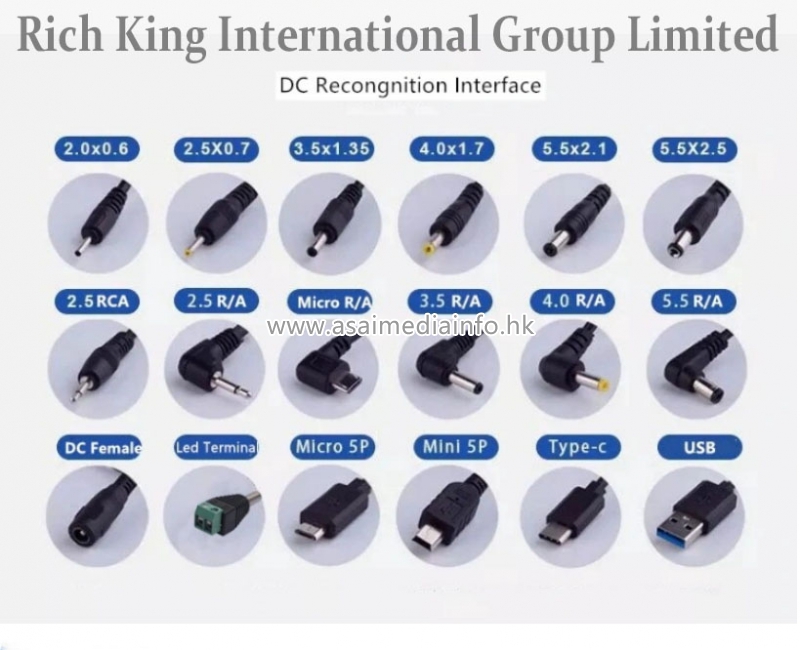

DC Connector  5.5*2.5 or 5.5*2.1mm/4pin(Customized Available)

DC Cable 1.2m/1.5m/1.8m(Customized Available)

AC Plug    USA/UK/EU/AU/India plugs(Customized Available)
